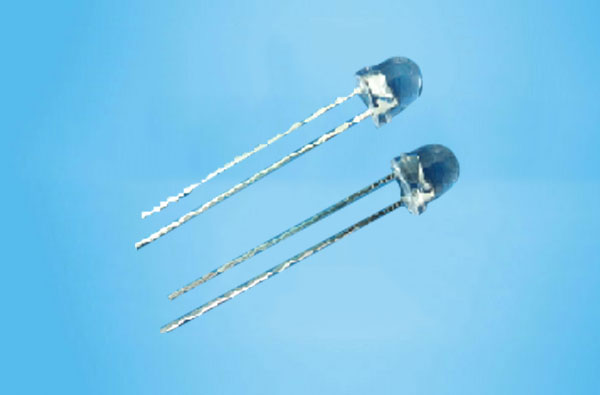

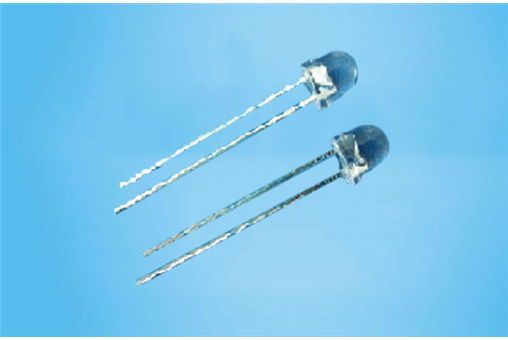

Home » Product » Infrared transmitting tube » 5AMWC06A草帽
1、Electrical / Optical Characteristics at TA=25℃(25℃环境下之电性/光学特性)
|
Parameter(参数) |
Symbol (符号) |
Min. (最小值) |
Typ. (规格值) |
Max. (最大值) |
Units (单位) |
TestConditions (测试条件) |
|
Forward Voltage (正向电压) |
VF |
1.1 |
1.25 |
1.4 |
V |
IF=20mA |
|
Dominate Wavelength (主波长) |
λD |
930 |
940 |
950 |
nm |
IF=20mA |
|
Spectral Line Half-width (带宽) |
Δλ |
- |
15 |
- |
nm |
IF=20mA |
|
Reverse Current (反向电流) |
IR |
- |
- |
10 |
uA |
VR=5V |
|
Radiant Intensity（辐射强度） |
Po |
30 |
40 |
50 |
mW/sr |
IF=20mA |
|
Tenninal Capacitanoe |
Ct |
20 |
pF |
F=1MHZ |
||
|
Viewing Angle(角度) |
2θ1/2 |
30° |
deg |
|||
|
Shoot distance（发射距离） |
15 |
20 |
m |
2、Absolute Maximum Ratings at TA=25℃(在25℃环境下之最大绝对额定值)
|
Parameter(参数) |
Symbo(符号) |
Maximum Rating(最大值) |
Units(单位) |
|
Power dissipation(功率消耗) |
Pd |
75 |
mW |
|
Forward Current(正向电流) |
IF |
30 |
mA |
|
Peak Forward Current (1)(正向电流峰值) |
IF(Peak) |
130 |
mA |
|
Reverse Voltage(反向电压) |
VR |
5 V |
|
|
Operating Temperature(操作温度) |
Topr |
-40oC To +80oC |
|
|
Storage Temperature(贮藏温度) |
Tstg |
-40oC To +80oC |
|
|
Lead Solder Temperature(2)(焊接温度) |
Tsol |
260oC for 3 seconds |
|
